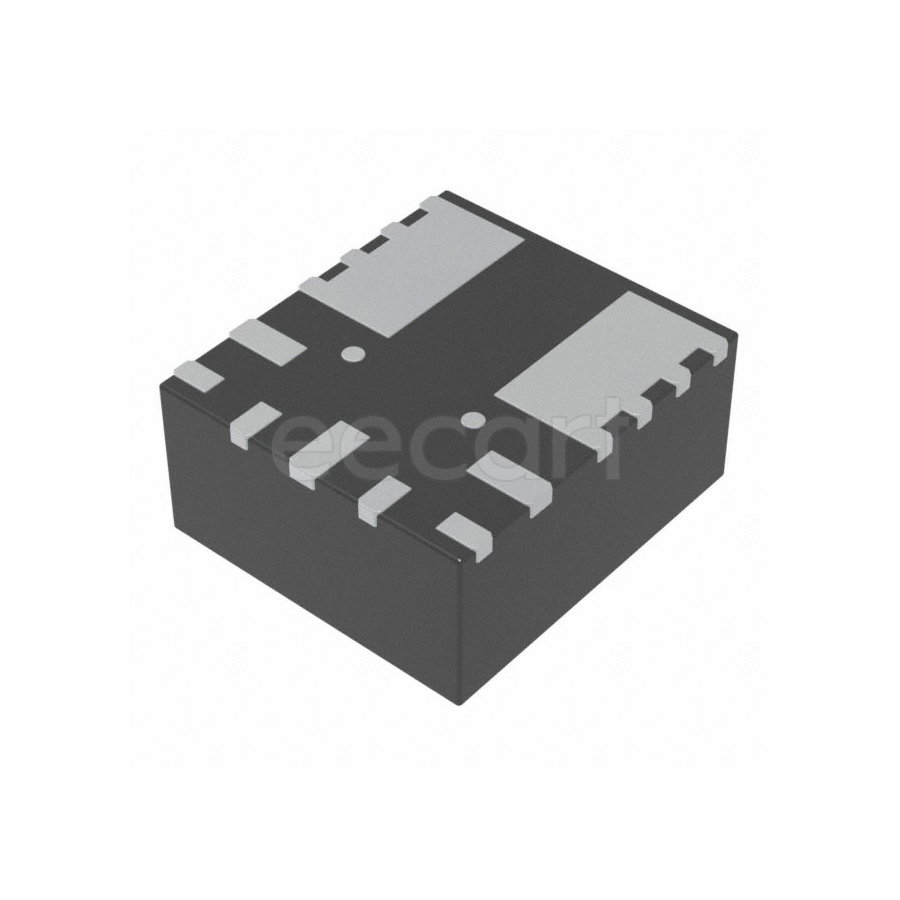

TPSM84209RKHT
Manufacturer:
Texas Instruments
Mfr.Part #:
TPSM84209RKHT
Datasheet:
Description:
Voltage Regulators - Switching QFN-FCMOD-9 SMD/SMT Buck 6 V
| Parameter | Value |
|---|---|
| Length | 4.5 mm |
| Width | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 9 |
| Height | 2.1 mm |
| Thickness | 2 mm |
| RoHS | Non-Compliant |
| Output Current | 2.5 A |
| Output Voltage | 6 V |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 28 V |
| Min Supply Voltage | 4.5 V |
| Ambient Temperature Range High | 85 °C |
| Switching Frequency | 750 kHz |
| Number of Outputs | 1 |
| Max Junction Temperature (Tj) | 125 °C |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Max Input Voltage | 28 V |
| Min Input Voltage | 4.5 V |
| Topology | Buck |
| Quiescent Current | 2 µA |
| Packaging | Reel |
Stock: 46
Distributors
pcbx
pcbxUnit Price$3.07245
Ext.Price$3.07245
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.07245 | $3.07245 |
| 10 | $2.33524 | $23.35240 |
| 25 | $2.15131 | $53.78275 |
| 50 | $2.04770 | $102.38500 |
| 100 | $1.94909 | $194.90900 |
